DC-DCcar power converter/DC(8.5-28V)turnDC5V/6A-12A/30W

Item No.YS-12-5-30W
Already sold: 71 items
In Stock

Now Price: $6.00
Sale: $5.70

Quantity:

Shipping:
Click "Add To Cart " to estimate the shipping cost.
For large quantity or custom cable & plug, please contact us by email: yasonne@hotmail.com.See details >>
Weight:
0.045KG
Package:
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details >>

Other items you might be interested in

  • Item Description
  • Related Download
  • Product's Reviews (9)
  • Write a Review

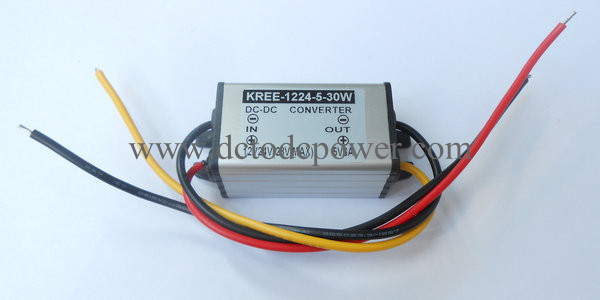

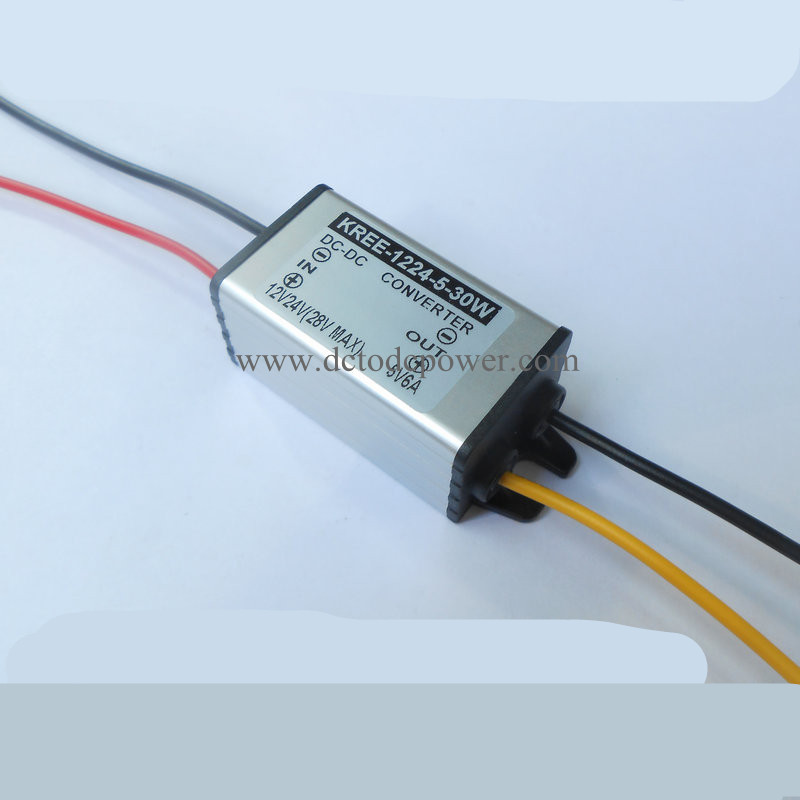

Product Name:DC-DCcar power converter/DC(8.5-28V)turnDC5V/6A-12A/30W

Keywords: car power converter step-down DC-DCLED car display module
Product Type: YS-12-5-30W
Modulation: FM pulse width modulation type
Connection: other / other
Function: Power transformer
Power Model: YS-12-5-30W

Parameters Table
Input voltage: DC12V24V (Wide Voltage 8.5V-28V)
Output voltage: DC5V
Output Current: 6A 12A peak
Output Power: 30W
Conversion rate: more than 96%
Ripple: 80MV
Working temperature: -40 ℃ ~ + 85 ℃ (Industrial Temperature)
Volume Specifications: 43 * 25 * 20MM (L * W * H)
Weight: 45 g / month
This product limit cheap sale is definitely on the market in general taxi / taxi LED car display the power of the best choice; long-term continuous P10 module with three stable job, enough to power one hundred percent; peaks of up to 12A ; performance is very stable; genuine. Note 499 below makes no concessions; please parents who do not waste time in bargaining terms.

Baby details:
1, any one of the input voltage between 8.5V-28V wide voltage can be accurately output 5V, voltage stability.

2, section baby can work long 6A peak 12A, which means you can load the device within the long-term stability without adding any 30W heatsink. Performance is very stable, full power enough.

3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.

4. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.

Note Description
(Keep in mind, such as for LED car display, this power is an output, turn the power supply to the control card, and then received a card from the control panel unit that can take three monochrome P10 board, or on the market conventional car screen (128 * 16, P6 or P7.62 monochrome) long-term stability.

Note Note:

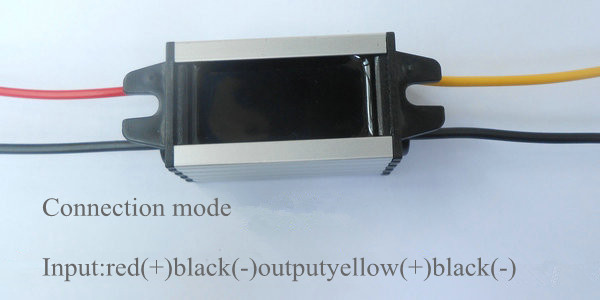

1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.
2, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it?
A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!
3, waterproof power supply, normal use, preservation six months.





ModelYS-12-5-30W
Input rated voltageDC12V/24V
Input voltage rangeDC(8.5-28)V
Efficiencymore than 96%
Output voltageDC5V
Output current6A
Output rated power30W
Voltage regulation< 1%
Load regulation< 2%
Ripple80MV
Working temperature-40~+85
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO

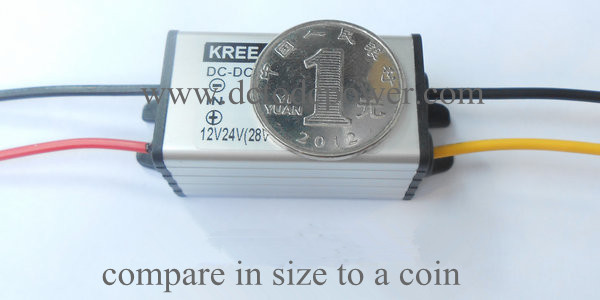

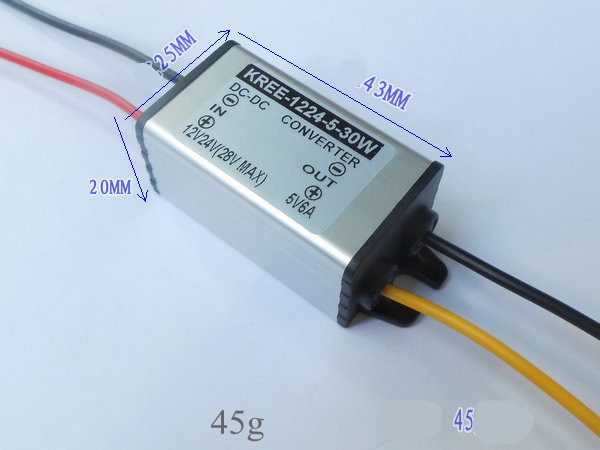

Item size43 * 25 * 20MM

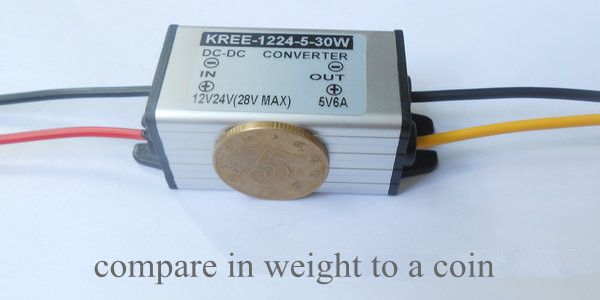

N. Weight45g
Cooling wayFree air convection








T1.S5LFedcXXXXXXXX_!!0-item_pic.jpgT2BRPtXjlbXXXXXXXX_!!469276642.jpgT2gUhbXylaXXXXXXXX_!!469276642.jpgT2vXRdXzxXXXXXXXXX_!!469276642.jpgT25MI3Xn8aXXXXXXXX_!!469276642 (1).jpgT27kwYXodaXXXXXXXX_!!469276642.jpg
