DC-DC converter,DC(7-40V)to DC5V,5A 25W

Item No.YS-1224-5-25W
Already sold: 40 items
In Stock

Now Price: $8.06
Sale: $7.66

Quantity:

Shipping:
Click "Add To Cart " to estimate the shipping cost.
For large quantity or custom cable & plug, please contact us by email: yasonne@hotmail.com.See details >>
Weight:
0.045KG
Package:
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details >>

Other items you might be interested in

  • Item Description
  • Related Download
  • Product's Reviews (9)
  • Write a Review



DC-DC converter,DC(7-40V)to DC5V,5A 25W

Keywords: buck power converter module

Product Type: YS-1224-5-25W

Parameters Table
Input voltage: (between DC7V-40V)
Output voltage: DC5V
Output Current: 5A MAX 5.5A peak
output power: 25W
Conversion efficiency: up to 96% of the output ripple: 50mV (MAX) Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)

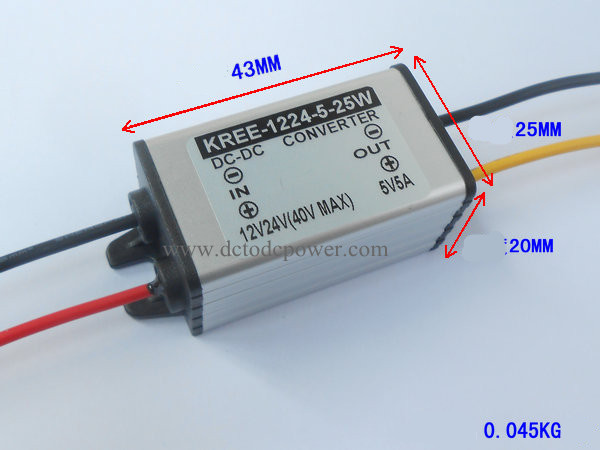

Volume: 43 * 25 * 20mm
Weight: 0.045KG / a


Features

1. Imported integrated switching regulator module manufacturing.

2. synchronous rectification, the conversion rate of 96% or more, very low heat.

3. reverse polarity protection, over-voltage, over-current, over-temperature, short circuit protection automatic braking function, and work in the conditions of recovery.

4. Aluminum alloy casing, epoxy potting, waterproof, shock, moisture and dust.

5. The line length is about 15CM, slim, small size, easy installation.

6. Connection: Enter the red (+) black line (-), the output of the yellow line (+) black (-).

7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .

Note:
1. Power comes with reverse polarity protection, even in the absence of electronic basis can try the same. Pick the wrong answer it like a new turn, will not cause any harm to the power supply.
2. To ensure that the module can output enough voltage and power, make sure there is adequate input supply voltage and power.
3. Please average output of more output with load line, please hasty merger with load.
4. It should be noted the maximum current output value reached thermal power module (module to give the best to leave some of the current margin, which last longer, do not use the maximum possible)





ModelYS-1224-5-25W
Input rated voltage
Input voltage rangeDC(7-40)V
Efficiencymore than 96%
Output voltageDC5V
Output current5A
Output rated power25W
Voltage regulation< 1%
Load regulation< 2%
Ripple50MV
Working temperature-40~+85
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Item size43 * 25 * 20MM
N. Weight45g
Cooling wayFree air convection
