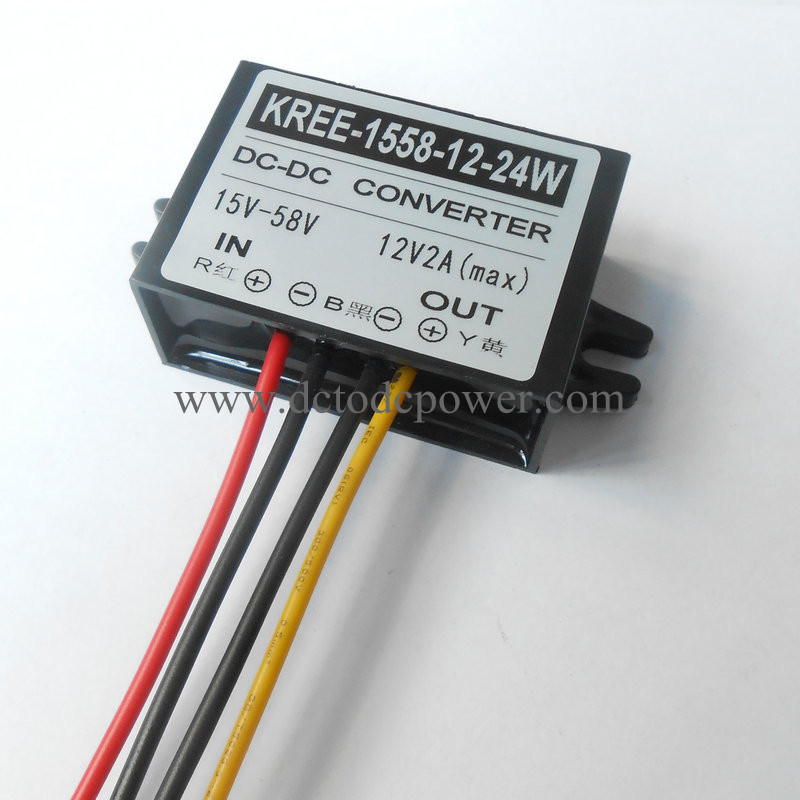

Name: DC-DC 15-55V
to 12V Voltage Converter 2A 24W
Details:
Product Type:
YS-D768S
Input voltage: DC
15V-55V
Output voltage: DC
12V
Output Current: 2A
Output Power: 24W
Conversion
efficiency: up to 96% of the output ripple: 50mV (MAX)
Operating
temperature: Industrial grade (-40 ℃ to + 85 ℃)
Volume: 46 * 32 *
18mm
Weight: 53 g
Features
1. Imported
integrated switching regulator module manufacturing.
2. synchronous
rectification, the conversion rate of 96% or more, very low heat.
3. reverse
polarity protection, over-voltage, over-current, over-temperature, short
circuit protection automatic braking function, and work in the conditions of
recovery.
4. epoxy potting,
waterproof, shock, moisture and dust.
5. The line length
is about 15CM, slim, small size, easy installation.
6. Connection:
Enter the red (+) black line (-), the output of the yellow line (+) black (-).
7. Scope: bus,
CMB, large trucks, motor car, solar power, bus display, taxi advertising
screen, absolute taxi radio without interference, car audio, LCD TVs, LED,
intercom and monitoring systems .

Model | YS-D768S |
Input rated voltage | DC 15V-55V |
Input voltage range | 15V-55V |
Efficiency | more than 96% |
Output voltage | DC 12V |
Output current | 2A |
Output rated power | 24W |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 200mV |
Working temperature | -40℃ ~ 85 ℃ |
Waterproof rating | IP68 |
Over-voltage protection | YES |
Over-current protection | YES |
Over-temperature protection | YES |
Short-circuit protection | NO |
Item size | 46 * 32 * 18mm |
N. Weight | 53 g |
Cooling way | Free air convection |



This product was added to our catalog on Tuesday 10 March, 2015.
