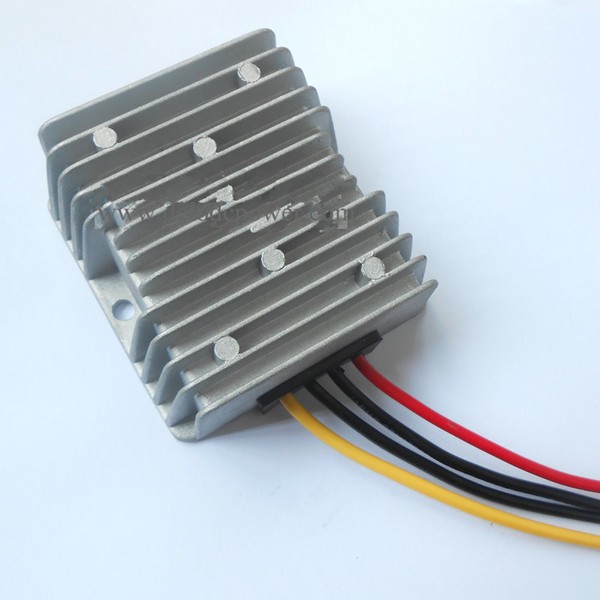

DC-DC converter DC36V(26-47V)to DC24V 10A 240W

Keywords: power converter 24V240W Regulators

Product Type: KREE-36V-24V240W

Parameters Table
 Input voltage: DC36V (wide voltage 26V-47V)
 Output voltage: DC 24V
 Output Current: 10A
 Output Power: 240W
 Conversion rate: 95% ripple 100MV
 Working temperature: -40 ℃ ~ + 85 ℃
 Volume Specifications: 74 * 74 * 32MM (L * W * H)
 Weight: 0.3KG / a

 Baby details:

1. Wide input voltage to any one of the output voltage can be accurately between 26V-47V 24V, voltage stability.

2, section 10A baby can work long-term, peak 20A, which means you can load equipment 240W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.

3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.

4. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.

Note Note:

1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.

2. If used (to the battery, motor, motor) in these three areas, it must be added to the positive power diode 24V output, so relatively safe, to prevent excessive current playing back to power, if not used in this three aspects do not need added. Plus diode follows:
B560 diodes themselves can go to the market to buy,You can also purchase one yuan / month with my company.

3, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it?

A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!

4, water supply, normal use, preservation six months.


Model  KREE-36V-24V240W
Input rated voltage  DC36V
Input voltage range  wide voltage 26V-47V
Efficiency 95%
Output voltage  DC 24V
Output current   10A
Output rated power  240W
Voltage regulation < 1%
Load regulation < 2%
Ripple  100MV
Working temperature  -40 ~ + 85
Waterproof rating IP68
Over-voltage protection YES
Over-current protection YES
Over-temperature protection YES
Short-circuit protection NO
Item size  74 * 74 * 32MM
N. Weight  0.3KG
Cooling way Free air convection
