DC-DC converter DC24V(18-40V) to DC15V 4A 60W

Item No.YS-24-15-60W
Already sold: 53 items
In Stock

Now Price: $9.00

Quantity:

Shipping:
Click "Add To Cart " to estimate the shipping cost.
For large quantity or custom cable & plug, please contact us by email: yasonne@hotmail.com.See details >>
Weight:
0.045KG
Package:
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details >>

Other items you might be interested in

  • Item Description
  • Related Download
  • Product's Reviews (9)
  • Write a Review
ABOUT US.jpg



features _.jpg

 DC-DC converter DC24V(18-40V) to DC15V 4A 60W

 Product Type: KREE-24-15-60W


The parameter table
 Input voltage: DC24V (wide voltage 18V-40V)
 Output voltage: DC15V
 Output Current: 4A peak MAX 5.5A
 Power: 60W
 Efficient conversion rate: more than 90%
 Ripple: 80MV
 Working temperature: -40 ℃ ~ + 85 ℃

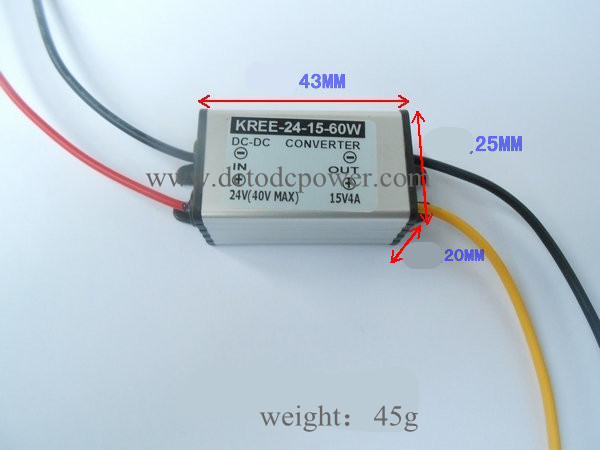

 Volume Specifications: 43 * 25 * 20MM (L * W * H)
 Weight: 0.045KG


Details:
1. Wide input voltage to any one of the output voltage can be accurately between 18V-40V 15V, voltage stability.

2, section 4A baby can work long-term, peak 5.5A, which means you can load device 60W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.

3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.

4, the power that comes with reverse polarity protection,, enter high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.


Note Note:
1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.
 2, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it?
 A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!
 3, waterproof power supply, normal use, preservation six months.





ModelKREE-24-15-60W
Input rated voltageDC24V
Input voltage range 18V-40V
Efficiencymore than 90%
Output voltageDC 15V
Output current4A
Output rated power60 Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple80mV
Working temperature  -40℃ to +80℃(Industrial Temperature)
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Item size43 * 25 * 20MM
N. Weight45g
Cooling wayFree air convection








item pictures_.jpg
