DC-DC converter DC12V(10-20V) to DC36V 4A 144W

Item No.YS-12-36-144W
Already sold: 55 items
In Stock

Now Price: $22.50

Quantity:

Shipping:
Click "Add To Cart " to estimate the shipping cost.
For large quantity or custom cable & plug, please contact us by email: yasonne@hotmail.com.See details >>
Weight:
0.3KG
Package:
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details >>

Other items you might be interested in

  • Item Description
  • Related Download
  • Product's Reviews (9)
  • Write a Review
ABOUT US.jpg


features _.jpg

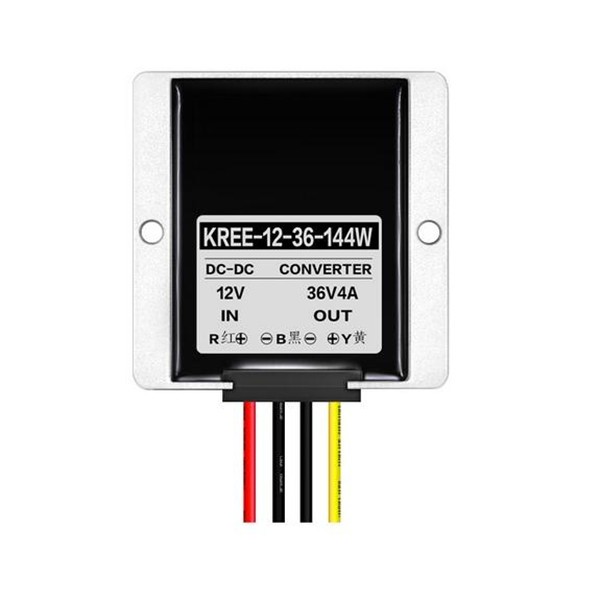

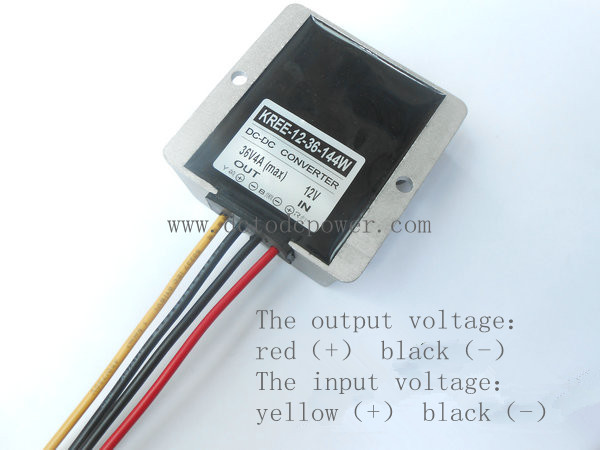

DC-DC converter DC12V(10-20V) to DC36V 4A 144W

Product Type: KREE-12-36-144W

Product details: The parameter table
 Input voltage: DC12V (wide voltage 10V-20V)
 Output voltage: DC36V
 Output Current: 4A
 Output Power: 144W
 Conversion rate: more than 90%
 Ripple: 40MV
 Working temperature: -40 ℃ ~ + 85 ℃
 Volume Specifications: 74 * 74 * 32MM
 Weight: 0.3KG


Details:
 1, any one of a voltage between 10V-20V wide voltage input can be accurately output 36V, voltage stability.
 2, section baby Peak 4A, long-term work 3A110W following use without adding any heat sink. Performance is very stable, full power enough.
 3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.
4. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.
 5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.


Note:
 1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.
 2, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it.
 A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!
 3, waterproof power supply, normal use, preservation six months.





ModelKREE-12-36-144W
Input rated voltageDC12V
Input voltage range 10V-20V
Efficiencymore than 90%
Output voltageDC 36V
Output current4A
Output rated power144 Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple40mV
Working temperature  -40℃ to +80℃(Industrial Temperature)
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Item size74 * 74 * 32MM
N. Weight300g
Cooling wayFree air convection
